Horizontal Driving Wheel Motorized Pallet Jack , Balanced Semi Electric Pallet Jack

Brand Name : M&D

Model Number : CBD-15A

Certification : CE ISO

Place of Origin : China

MOQ : 1 set

Price : negotiable

Supply Ability : 200 set per month

Delivery Time : 15-20 days

Packaging Details : nude

color : customised

wheel : Nylon PU

material : Round Solid Steel

handle : 3-POSITION

fork length : 1150mm

fork width : 160mm

Contact Now

Horizontal Driving Wheel Motorised Pallet Jack , Balanced Semi Electric Pallet Jack

Detailed Product Description

Name:	Semi Electric Pallet Truck	Lowered Fork Height:	85/75mm
Max. Lifting Height:	200/190mm	Tyre Size, Front:	185mm
Tyre Size, Rear:	80/74mm	Fork Dimensions:	45/160/1150(1220)mm
Travel Speed:	2.6/3.8km/h	Battery:	24V40AH

1500kg free maintenance semi electric pallet truck with horizontal driving wheel

Quick details:

Model: Semi Electric Pallet Truck CBD15A

Capacity: 1500kg

Lowered fork height: 85/75mm

Max. Lifting height: 200/190mm

Aisle width for pallets, 1000*1200 crossways: 1885/1955mm

Aisle width for pallets, 800*1200 lengthways: 1935/1955mm

Battery: 24V40AH

Service weight: 150kg

Advantages:

Parmanent magnet brushless motor with high electric efficiency, maintenance free.
Good gradient performance.
With smallest turning radius.
Full sealed battery free to maintain, big capacity 24V65AH fit for high intensitive use.
Constant traction speed for laden or unladen, improves productive efficiency.
Horizontal drive wheel provides convenient replacement.
Stepless speed control.
Floating balance wheel supports automatic height adjusting.
Built in charger.

1500kg Semi electric pallet truck

Horizontal Driving Wheel Motorized Pallet Jack , Balanced Semi Electric Pallet Jack

SPECIFICATIONS OF SEMI ELECTRIC PALLET TRUCK
Model		CBD15A
Load capacity	kg	1500
Load centre distance	mm	600
Fork height, lowered	mm	85/75
Tyre size, front	mm	195
Tyre size, rear	mm	80/74
Max. lifting height	mm	190/180
Height of tiller in drive position min./max.	mm	770/1254
Overall length	mm	1644/1714
Length to face of forks	mm	490
Fork dimensions	mm	53/160/1150(1220)
Width overall forks	mm	520/550/685
Aisle width for pallets 1000*1200 crossways	mm	1844/1914
Aisle width for pallets 800*1200 lengthways	mm	1894/1914
Turning radius	mm	1445/1515
Travel speed, laden/unladen	km/h	5.3/5.8
Battery	V/Ah	24/65
Service weight	kg	200

Package:

The trucks will be packed with pallets and plastics or cartons.

Product Tags:

motorised pallet truck

walkie pallet jack

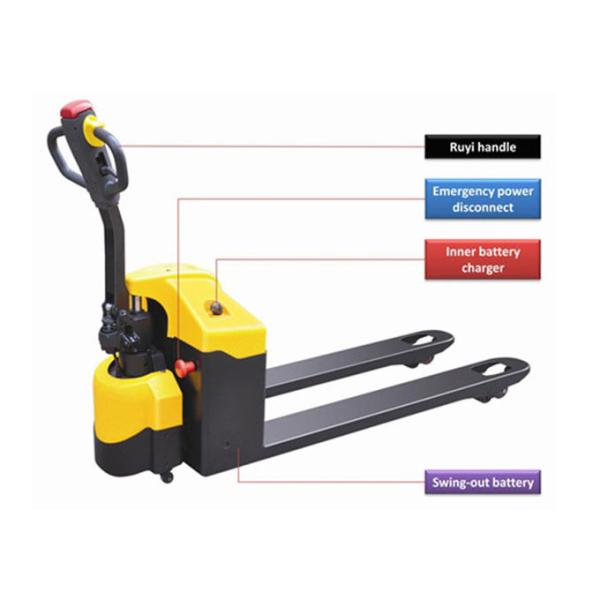

Horizontal Driving Wheel Motorized Pallet Jack , Balanced Semi Electric Pallet Jack Images
