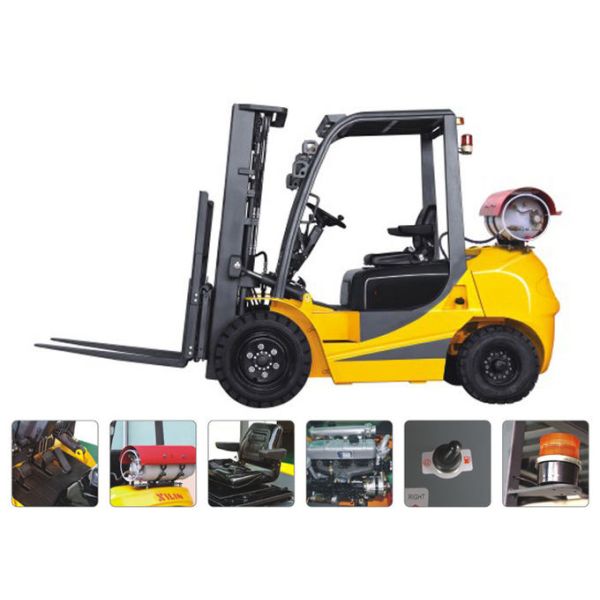

Speed 20 km / H Dual Fuel Forklift 3.5 Ton , LPG Forklift Truck With Clear Visibility

Product Categories

Shanghai M.Touch Road Mechanical Equipment Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Speed 20 km / H Dual Fuel Forklift 3.5 Ton , LPG Forklift Truck With Clear Visibility

Brand Name : M&D

Model Number : FG35

Certification : CE ISO

Place of Origin : china

MOQ : 1 set

Price : negotiable

Supply Ability : 200 set per month

Delivery Time : 15-20 days

Packaging Details : 20fcl container can load 5 units and one 40'HC can load 7 units ,by sea & trucks as actual situation , HS code: 8427 1090 00

color : customised

Engine : ISUZU

tyre : Front:6.50-10-10PR,Rear:5.00-8-.00

fork size : 920mm*100mm*35mm

Load center : 500mm

Max. Lifting Height : 6000mm

Contact Now

Speed 20 km / H Dual Fuel Forklift 3.5 Ton , LPG Forklift Truck With Clear Visibility

Detailed Product Description

Capacity:	3500kg	Max. Lifting Height:	3meter To 6meter
Load Centre Distance:	485mm	Tyre Size, Front:	710*220mm
Tyre Size, Rear:	590*175mm	Fork Dimensions:	50/130/1070mm
Travel Speed:	20km/h	Operating Pressure For Attachments:	16.5Mpa

3.5t LPG dual fuel four wheel forklift 3meter to 6meter height with clear visibility

Quick details:

Capacity: 3500kg

Max. lifting height: 3meter to 6meter

Load centre distance: 485mm

Tyre size, front: 710*220mm

Tyre size, rear: 590*175mm

Fork dimensions: 50/130/1070mm

Travel speed: 20km/h

Operating pressure for attachments: 16.5Mpa

Advantages:

LPG four wheel forklift pay attention to green environmental protection, low emission and low noise.
LPG four wheel forklift with electronic gear shift control device is convenient, comfortable and reliable.
Dual fuel powered four wheel forklift with hand brake rod, electronic shift with interlocking function.
LPG dual fuel four wheel forklift with intelligent decline, intelligent buffer system, can perceive and adjust speed to ground speed, to ensure the safe landing of the goods.
The brake pad of the LPG four wheel forklift does not contain asbestos.
Engine for LPG dual fuel four wheel forklift can choose Chinese or Japanese brand.

SPECIFICATIONS
Model		FGY35
Power		LPG
Operation type		seat
Load capacity	kg	3500
Load center distance	mm	500
Load distance, centre of drive axle to fork	mm	485
Wheelbase	mm	1700
Axle loading, laden front/rear	kg	7002/955
Axle loading, unladen front/rear	kg	1783/2674
Tyres type		pneumatic/solid
Tyre size, front	mm	710220/695218
Tyre size, rear	mm	590175/577162
Tilt of mast/fork carriage forward/backward	Grad	6°-12°
Height, mast lowered	mm	2060-3139
Max. lifting height	mm	3000-6000
Height, mast extended	mm	4250-7250
Height of overhead guard(cabin)	mm	2105
Seat height/stand height	mm	1064
Overall length	mm	3860
Length to face of forks	mm	2790
Overall width	mm	1225
Fork dimensions	mm	50/130/1070
Fork carriage width	mm	1200
Ground clearance, laden, below mast	mm	135
Ground clearance, centre of wheelbase	mm	150
Aisle width for pallets 1000*1200 crossways	mm	4000
Aisle width for pallets 800*1200 lengthways	mm	3800
Turning radius	mm	2400
Travel speed, laden/unladen	km/h	20
Lift speed, laden/unladen	mm/s	400
Lowering speed, laden/unladen	mm/s	＜600
Max. drawbar pull, laden/unladen	N	21600
Max. gradeability, laden/unladen	%	20/27
Acceleration time, laden/unladen	s	3/4
Engine type		K25/491
Engine power	kw	37.4/41
Rated speed	R/Min	2300/2500
Type of drive control		mechanical/hydraulic
Operating pressure for attachments	Mpa	16.5
Sound level at the driver's ear acc. to DIN 12053	dB(A)	＜82
Service weight	kg	4457
